How to Install Eclipse IDE on Ubuntu 20.04

Eclipse is an open-source IDE used for java application development. It also supports some other programming languages like PHP, Perl, Android, C/C++. Eclipse can run on Linux, Windows, and MacOS.

Today’s post is about how to install Eclipse IDE on Ubuntu OS. On Ubuntu, Eclipse IDE can be installed through different methods. Here, we will cover:

• Installation of Eclipse IDE via Direct Download
• Installation of Eclipse IDE via Snap

Note: The installation procedures described here have been tested on Ubuntu 20.04 LTS.

Prerequisites

In order to install Eclipse IDE, you have to install JRE (Java Runtime Environment) on your Ubuntu machine:

$ sudo apt update
$ sudo apt install default-jre

To verify that Java was successfully installed, let’s run:

$ java --version

Output:

openjdk 11.0.11 2021-04-20
OpenJDK Runtime Environment (build 11.0.11+9-Ubuntu-0ubuntu2.20.04)
OpenJDK 64-Bit Server VM (build 11.0.11+9-Ubuntu-0ubuntu2.20.04, mixed mode, sharing)

Installation via Direct Download

In this method, we will install the Eclipse IDE using the tar.gz package available at eclipse.org official website. This method helps you to install the latest version of Eclipse 2021-06 available at eclipse.org website. Follow the below steps to install Eclipse IDE on Linux Ubuntu.

1. In order to run Eclipse, you will first require JRE to be installed on your system. Use the command below to install JRE on your Ubuntu system:

$ sudo apt install default-jre

Enter your sudo password, and if a y/n prompt appears during installation, type y and press Enter.

2. Download the Eclipse tar.gz package from the Eclipse website Downloads page or use the command below:

$ wget https://mirrors.ustc.edu.cn/eclipse/oomph/epp/2021-06/R/eclipse-inst-jre-linux64.tar.gz
$ wget https://ftp.jaist.ac.jp/pub/eclipse/oomph/epp/2022-03/R/eclipse-inst-jre-linux64.tar.gz
$ wget https://mirrors.nju.edu.cn/eclipse//oomph/epp/2022-03/R/eclipse-inst-jre-linux64.tar.gz

The downloaded file will be in archive format.

3. Extract the tar.gz archive using the command below:

$ sudo tar -xf eclipse-inst-jre-linux64.tar.gz

The archive will be extracted to a directory named eclipse-inst-jre-linux64

Let’s extract the downloaded tarball file to the directory ‘/opt’ by running the following command:

$ sudo tar -xf eclipse-inst-jre-linux64.tar.gz -C /opt

In order to install Eclipse, launch the installer file ‘eclipse-inst’ by running the following command:

$ cd /opt/eclipse-installer
$ ./eclipse-inst

4. Now to install Eclipse, first move inside the extracted directory using this command:

$ cd eclipse-installer/

Then use the command below to run the installer script:

$ ./eclipse-inst

After running the installer script, the following window will appear for you to choose the IDE package to install. Click the desired package to select it. If you learn to write Java or Java Core applications, then choose Java Developers, while writing web, choose Enterprise Java Developers.

Now you can either specify an installation folder or leave the default folder selected. Then click the INSTALL button.

Then click Accept Now to agree with the license terms.

After the installation is completed, click Launch.

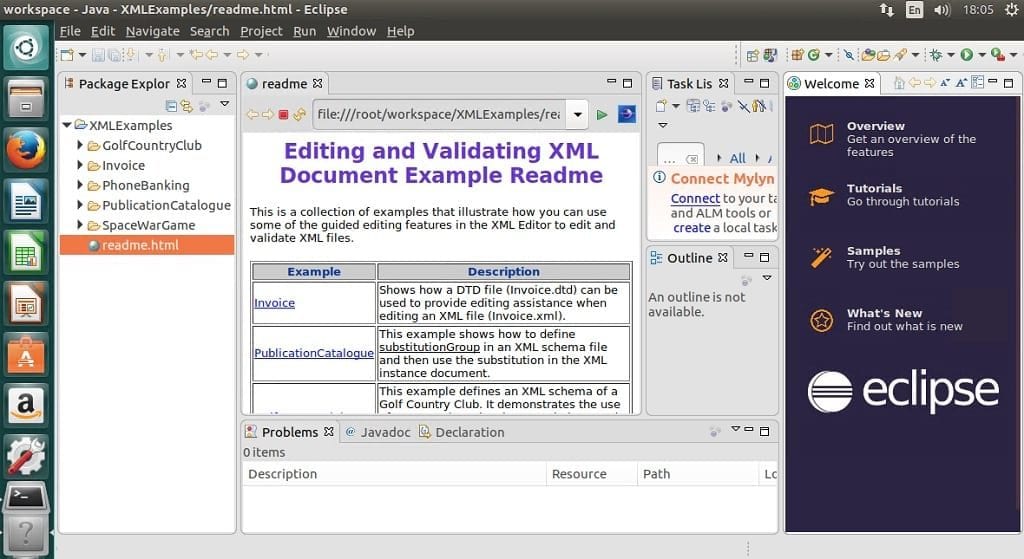

This will launch the Eclipse IDE application on your system.

After installation, you can launch Eclipse IDE from the Applications menu. Hit the super key and then search for the Eclipse using the search bar at the top.

Installation via Snap

You can also install Eclipse IDE using the snap package. As of July 2021, the latest version of the Eclipse snap package is 2019-12. Follow the below steps to install Eclipse IDE on Linux Ubuntu:

1. First install snapd on your Ubuntu system using the command below:

$ sudo apt install snapd

Enter your sudo password, and if a y/n prompt appears during installation, type y and press Enter.

2. Now install Eclipse using the command:

$ sudo snap install eclipse --classic

Once Eclipse is installed, you will see the below output.

After installation, you can launch Eclipse IDE from the Applications menu. Hit the super key and then search for the Eclipse using the search bar at the top.

This will launch the IDE application on your system.

Remove Eclipse IDE

If you need to uninstall Eclipse IDE for any reason, you can do it as follows:

If you have installed Eclipse IDE via the direct download method, you can remove it using the commands below:

$ sudo rm -r ~/.eclipse

$ sudo rm –r ~/ eclipse-workspace

If you have installed Eclipse IDE via snap, you can remove it using the command below:

$ sudo snap remove eclipse --classic

Using either the direct download or the snap method, you can easily install Eclipse IDE on your Ubuntu system. The method to remove Eclipse IDE is also discussed here in case you want to uninstall it.

Create launcher icon

Once the Eclipse is downloaded and installed successfully, you may need to create a shortcut to launch your IDE. Using your favorite editor to create a file named ‘eclipse.desktop’ and enter the following lines to it:

[Desktop Entry]
Name=Eclipse
Type=Application
Exec=/opt/eclipse/eclipse
Terminal=false
Icon=/opt/eclipse/icon.xpm
Comment=Integrated Development Environment
NoDisplay=false
Categories=Development;IDE;
Name[en]=Eclipse
Name[en_US]=Eclipse

Please note that the paths in lines ‘Exec=’ and ‘Icon=’ are depended on your system. You can find the path in Exec line by running command:

$ which eclipse

Now, let’s enable the launcher icon:

$ sudo chmod +x eclipse.desktop
$ sudo mv eclipse.desktop /usr/share/applications/eclipse.desktop

That’s all. From now on, you can search for eclipse and launch it in the Applications center on your Ubuntu machine.

Conclusion

In this tutorial, we learned how to install the Eclipse IDE on Ubuntu 20.04. You can now begin to write your own codes to create many awesome applications with Eclipse.

Thanks for reading and please leave your suggestion in the below comment section.
