Maven – How to create a Java web application project

ByFavTuts Editorial

Apr 29, 2022 #Jetty, #JUnit, #Maven, #Spring Mvc, #web application, #web project

In this tutorial, we will show you how to use Maven to manage a Java web project. At the end, we will create a Spring MVC web application, display a current date on a JSP page.

Technologies used :

  1. Maven 3.5.3
  2. JDK 8
  3. Spring 5.1.0.RELEASE
  4. JUnit 5
  5. Logback 1.2.3
  6. Jetty 9.4.x or Tomcat 8.5

1. Create a web project from Maven Template

Create a web project from Maven template maven-archetype-webapp

mvn archetype:generate
	-DgroupId={project-packaging}
	-DartifactId={project-name}
	-DarchetypeArtifactId={maven-template}
	-DinteractiveMode=false

For example,

D:\>mvn archetype:generate -DgroupId=com.favtuts.web -DartifactId=java-web-project -DarchetypeArtifactId=maven-archetype-webapp -DinteractiveMode=false

[INFO] Scanning for projects...
[INFO]
[INFO] ------------------< org.apache.maven:standalone-pom >-------------------
[INFO] Building Maven Stub Project (No POM) 1
[INFO] --------------------------------[ pom ]---------------------------------
[INFO]
[INFO] >>> maven-archetype-plugin:3.0.1:generate (default-cli) > generate-sources @ standalone-pom >>>
[INFO]
[INFO] <<< maven-archetype-plugin:3.0.1:generate (default-cli) < generate-sources @ standalone-pom <<<
[INFO]
[INFO]
[INFO] --- maven-archetype-plugin:3.0.1:generate (default-cli) @ standalone-pom ---
[INFO] Generating project in Batch mode
[INFO] ----------------------------------------------------------------------------
[INFO] Using following parameters for creating project from Old (1.x) Archetype: maven-archetype-webapp:1.0
[INFO] ----------------------------------------------------------------------------
[INFO] Parameter: basedir, Value: D:\
[INFO] Parameter: package, Value: com.favtuts.web
[INFO] Parameter: groupId, Value: com.favtuts.web
[INFO] Parameter: artifactId, Value: java-web-project
[INFO] Parameter: packageName, Value: com.favtuts.web
[INFO] Parameter: version, Value: 1.0-SNAPSHOT
[INFO] project created from Old (1.x) Archetype in dir: D:\java-web-project
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 6.509 s
[INFO] Finished at: 2021-10-04T15:25:16+08:00
[INFO] ------------------------------------------------------------------------

Note
Actually, this is optional to generate a web project from a Maven web template. You can always generate those folders with the classic mkdir command manually.

2. Maven Template

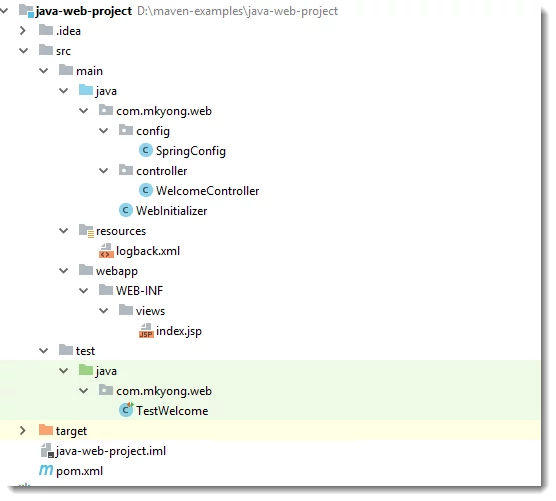

2.1 The following project directory structure will be created.

P.S Above figure is captured from IntelliJ IDEA, just ignore those IDE folders like .idea and java-web-project.iml

2.2 Review the generated pom.xml.

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
	http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.favtuts.web</groupId>
  <artifactId>java-web-project</artifactId>
  <packaging>war</packaging>
  <version>1.0-SNAPSHOT</version>
  <name>java-web-project Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>3.8.1</version>
      <scope>test</scope>
    </dependency>
  </dependencies>
  <build>
    <finalName>java-web-project</finalName>
  </build>
</project>

P.S The generated files are not much value, we will update all of them later. First, delete the web.xml, we don’t need this.

3. Update POM

3.1 Update the pom.xml file, add dependencies for Spring MVC for web framework, JUnit for unit test, Jetty server to test the web project, and also some Maven configuration.

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
		 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.favtuts.web</groupId>
    <artifactId>java-web-project</artifactId>
    <packaging>war</packaging>
    <version>1.0-SNAPSHOT</version>
    <name>java-web-project Maven Webapp</name>
    <url>http://maven.apache.org</url>
    <properties>
        <!-- https://maven.apache.org/general.html#encoding-warning -->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <spring.version>5.1.0.RELEASE</spring.version>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- logging , spring 5 no more bridge, thanks spring-jcl -->
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>1.2.3</version>
        </dependency>

        <!-- junit 5, unit test -->
        <dependency>
            <groupId>org.junit.jupiter</groupId>
            <artifactId>junit-jupiter-engine</artifactId>
            <version>5.3.1</version>
            <scope>test</scope>
        </dependency>

        <!-- unit test -->
        <dependency>
            <groupId>org.hamcrest</groupId>
            <artifactId>hamcrest-library</artifactId>
            <version>1.3</version>
            <scope>test</scope>
        </dependency>

        <!-- for web servlet -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>

        <!-- Some containers like Tomcat don't have jstl library -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
            <scope>provided</scope>
        </dependency>

    </dependencies>
    <build>
        <finalName>java-web-project</finalName>
        <plugins>
            <!-- http://www.eclipse.org/jetty/documentation/current/jetty-maven-plugin.html -->
            <plugin>
                <groupId>org.eclipse.jetty</groupId>
                <artifactId>jetty-maven-plugin</artifactId>
                <version>9.4.12.v20180830</version>
            </plugin>

            <!-- Default is too old, update to latest to run the latest Spring 5 + jUnit 5 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.22.0</version>
            </plugin>

            <!-- Default 2.2 is too old, update to latest -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-war-plugin</artifactId>
                <version>3.2.2</version>
            </plugin>

        </plugins>
    </build>

</project>

3.2 Display the project dependencies.

D:\> mvn dependency:tree

...
[INFO] --- maven-dependency-plugin:2.8:tree (default-cli) @ java-web-project ---
[INFO] com.favtuts.web:java-web-project:war:1.0-SNAPSHOT
[INFO] +- org.springframework:spring-webmvc:jar:5.1.0.RELEASE:compile
[INFO] |  +- org.springframework:spring-aop:jar:5.1.0.RELEASE:compile
[INFO] |  +- org.springframework:spring-beans:jar:5.1.0.RELEASE:compile
[INFO] |  +- org.springframework:spring-context:jar:5.1.0.RELEASE:compile
[INFO] |  +- org.springframework:spring-core:jar:5.1.0.RELEASE:compile
[INFO] |  |  \- org.springframework:spring-jcl:jar:5.1.0.RELEASE:compile
[INFO] |  +- org.springframework:spring-expression:jar:5.1.0.RELEASE:compile
[INFO] |  \- org.springframework:spring-web:jar:5.1.0.RELEASE:compile
[INFO] +- org.springframework:spring-test:jar:5.1.0.RELEASE:compile
[INFO] +- ch.qos.logback:logback-classic:jar:1.2.3:compile
[INFO] |  +- ch.qos.logback:logback-core:jar:1.2.3:compile
[INFO] |  \- org.slf4j:slf4j-api:jar:1.7.25:compile
[INFO] +- org.junit.jupiter:junit-jupiter-engine:jar:5.3.1:test
[INFO] |  +- org.apiguardian:apiguardian-api:jar:1.0.0:test
[INFO] |  +- org.junit.platform:junit-platform-engine:jar:1.3.1:test
[INFO] |  |  +- org.junit.platform:junit-platform-commons:jar:1.3.1:test
[INFO] |  |  \- org.opentest4j:opentest4j:jar:1.1.1:test
[INFO] |  \- org.junit.jupiter:junit-jupiter-api:jar:5.3.1:test
[INFO] +- org.hamcrest:hamcrest-library:jar:1.3:test
[INFO] |  \- org.hamcrest:hamcrest-core:jar:1.3:test
[INFO] +- javax.servlet:javax.servlet-api:jar:3.1.0:provided
[INFO] \- javax.servlet:jstl:jar:1.2:provided
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 0.931 s
[INFO] Finished at: 2021-10-08T15:55:08+08:00
[INFO] ------------------------------------------------------------------------

4. Spring MVC + JSP + LogBack

4.1 Create a few files to bootstrap Spring MVC web project.

SpringConfig.java

package com.favtuts.web.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import org.springframework.web.servlet.view.InternalResourceViewResolver;
import org.springframework.web.servlet.view.JstlView;

@EnableWebMvc
@Configuration
@ComponentScan({"com.favtuts.web"})
public class SpringConfig implements WebMvcConfigurer {

    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/resources/**")
                .addResourceLocations("/resources/");
    }

    @Bean
    public InternalResourceViewResolver viewResolver() {
        InternalResourceViewResolver viewResolver
                = new InternalResourceViewResolver();
        viewResolver.setViewClass(JstlView.class);
        viewResolver.setPrefix("/WEB-INF/views/");
        viewResolver.setSuffix(".jsp");
        return viewResolver;
    }
}

WebInitializer.java

package com.favtuts.web;

import com.favtuts.web.config.SpringConfig;
import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;

public class WebInitializer extends AbstractAnnotationConfigDispatcherServletInitializer {

    @Override
    protected Class<?>[] getRootConfigClasses() {
        return null;
    }

    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class[]{SpringConfig.class};
    }

    @Override
    protected String[] getServletMappings() {
        return new String[]{"/"};
    }

}

WelcomeController.java

package com.favtuts.web.controller;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;

import java.util.Date;

@Controller
public class WelcomeController {

    private final Logger logger = LoggerFactory.getLogger(WelcomeController.class);

    @GetMapping("/")
    public String index(Model model) {
        logger.debug("Welcome to tuts.heomi.net...");
        model.addAttribute("msg", getMessage());
        model.addAttribute("today", new Date());
        return "index";

    }

    private String getMessage() {
        return "Hello World";
    }

}

4.2 Move the index.jsp file into the WEB-INF folder, and update it

index.jsp

<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt"%>
<html>
<body>
<h1>${msg}</h1>
<h2>Today is <fmt:formatDate value="${today}" pattern="yyy-MM-dd" /></h2>
</body>
</html>

4.3 Logs to console.

logback.xml

<?xml version="1.0" encoding="UTF-8"?>
<configuration>

    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <layout class="ch.qos.logback.classic.PatternLayout">

            <Pattern>
                %d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{36} - %msg%n
            </Pattern>

        </layout>
    </appender>

    <logger name="com.favtuts.web" level="debug"
            additivity="false">
        <appender-ref ref="STDOUT"/>
    </logger>

    <root level="error">
        <appender-ref ref="STDOUT"/>
    </root>

</configuration>

5. Unit Test

A simple Spring MVC 5 + JUnit 5 example.

TestWelcome.java

package com.favtuts.web;

import com.favtuts.web.config.SpringConfig;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.junit.jupiter.web.SpringJUnitWebConfig;
import org.springframework.test.web.servlet.MockMvc;
import org.springframework.test.web.servlet.setup.MockMvcBuilders;
import org.springframework.web.context.WebApplicationContext;

import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.get;
import static org.springframework.test.web.servlet.result.MockMvcResultHandlers.print;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.*;

@SpringJUnitWebConfig(SpringConfig.class)
public class TestWelcome {

    private MockMvc mockMvc;

    @Autowired
    private WebApplicationContext webAppContext;

    @BeforeEach
    public void setup() {
        mockMvc = MockMvcBuilders.webAppContextSetup(webAppContext).build();
    }

    @Test
    public void testWelcome() throws Exception {

        this.mockMvc.perform(
                get("/"))
                .andDo(print())
                .andExpect(status().isOk())
                .andExpect(view().name("index"))
                .andExpect(forwardedUrl("/WEB-INF/views/index.jsp"))
                .andExpect(model().attribute("msg", "Hello World"));
    }

}

6. Directory Structure

Review the final files and directory structure.

Read this Maven Standard Directory Layout.

7. Demo

7.1 Test the web project with Jetty web server – mvn jetty:run

D:\> mvn jetty:run

[INFO] webAppSourceDirectory not set. Trying src\main\webapp
[INFO] Reload Mechanic: automatic
[INFO] nonBlocking:false
[INFO] Classes = D:\java-web-project\target\classes
[INFO] Configuring Jetty for project: java-web-project Maven Webapp
[INFO] Logging initialized @4821ms to org.eclipse.jetty.util.log.Slf4jLog
[INFO] Context path = /
[INFO] Tmp directory = D:\java-web-project\target\tmp
[INFO] Web defaults = org/eclipse/jetty/webapp/webdefault.xml
[INFO] Web overrides =  none
[INFO] web.xml file = null
[INFO] Webapp directory = D:\java-web-project\src\main\webapp
[INFO] jetty-9.4.12.v20180830; built: 2021-08-30T13:59:14.071Z; git: 27208684755d94a92186989f695db2d7b21ebc51; jvm 10.0.1+10

...

[INFO] 1 Spring WebApplicationInitializers detected on classpath
2021-10-08 15:11:50 [main] DEBUG com.favtuts.web.WebInitializer - No ContextLoaderListener registered, as createRootApplicationContext() did not return an application context
[INFO] DefaultSessionIdManager workerName=node0
[INFO] No SessionScavenger set, using defaults
[INFO] node0 Scavenging every 660000ms
[INFO] Initializing Spring DispatcherServlet 'dispatcher'
[INFO] Started o.e.j.m.p.JettyWebAppContext@68a78f3c{/,file:///D:/java-web-project/src/main/webapp/,AVAILABLE}{file:///D:/java-web-project/src/main/webapp/}
[INFO] Started ServerConnector@3355168{HTTP/1.1,[http/1.1]}{0.0.0.0:8080}
[INFO] Started @6271ms
[INFO] Started Jetty Server
2021-10-08 15:12:01 [qtp1373051324-19] DEBUG c.m.web.controller.WelcomeController - Welcome to tuts.heomi.net...

7.2 Access it via http://localhost:8080/

P.S CTRL + C to stop the Jetty web server.

8. Deployment

8.1 mvn package to generate a WAR file for deployment.

D:\> mvn package

...

[INFO] Packaging webapp
[INFO] Assembling webapp [java-web-project] in [D:\java-web-project\target\java-web-project]
[INFO] Processing war project
[INFO] Copying webapp resources [D:\java-web-project\src\main\webapp]
[INFO] Webapp assembled in [89 msecs]
[INFO] Building war: D:\java-web-project\target\java-web-project.war
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 3.844 s
[INFO] Finished at: 2021-10-08T15:31:12+08:00
[INFO] ------------------------------------------------------------------------

The default directory for the generated WAR is target/finalName. Done.

Download Source Code

$ git clone https://github.com/favtuts/java-maven-tutorials.git
$ cd java-web-project
$ mvn jetty:run
http://localhost:8080

References

  1. Maven Surefire Plugin – Using JUnit 5 Platform
  2. Maven – Introduction to the Standard Directory Layout
  3. Apache Tomcat Maven Plugin

By FavTuts Editorial

Related Post

Java Maven Spring Boot

How to create a Maven Multi Module project in Spring Boot

Sep 21, 2023 FavTuts Editorial
Gradle Java Maven Spring Boot

Spring Boot REST API Example – Step-by-Step Guide

Sep 8, 2023 FavTuts Editorial
Java Maven

Run Your Maven Build Anywhere with the Maven Wrapper

Sep 4, 2023 FavTuts Editorial

Leave a Reply

Your email address will not be published. Required fields are marked *

You missed

Spring Boot

Validation with Spring Boot – the Complete Guide

December 10, 2024 FavTuts Editorial
Spring Boot

How to Record Request and Response Bodies in Sping Boot Applications

December 8, 2024 FavTuts Editorial
Spring Boot

How to create a Spring Boot console application

December 4, 2024 FavTuts Editorial
PHP

How To Change Your PHP Settings on Ubuntu

November 30, 2024 FavTuts Editorial
