Pods are the smallest deployable unit of Kubernetes where we can run our applications. Scheduling in Kubernetes is a core component as it aims to schedule the pod to a correct and available node. If you want to understand why Pods are placed onto a particular Node, or if you’re planning to know types of scheduling then this blog is for you!
What is Scheduling in Kubernetes

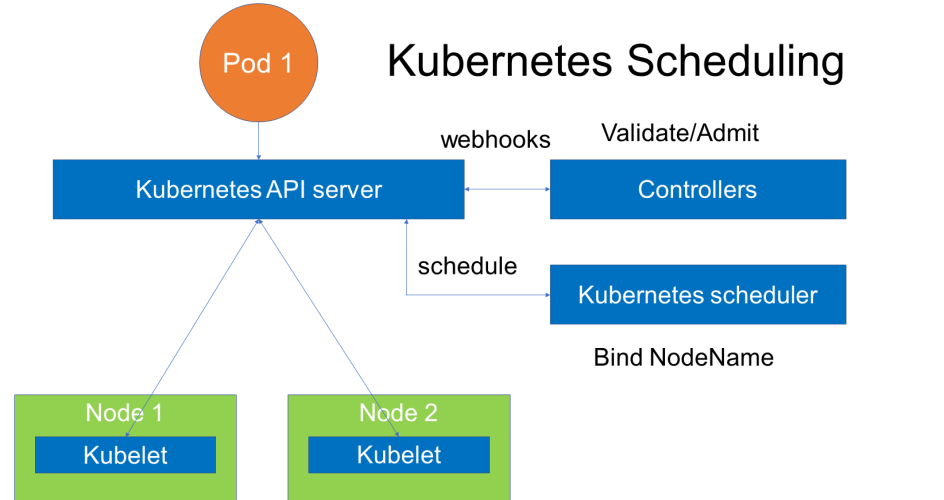

For every Pod that the scheduler discovers, it becomes responsible for finding the best Node for that Pod to run on. In Kubernetes, scheduling refers to making sure that Pods are matched to Nodes so that Kubelet can run them on the available nodes.
The Kubernetes scheduler’s task is to ensure that each pod is assigned to a node to run on. At a high-level K8s scheduler works in the following way:
- When new pods are created, they’re added to a queue.
- The scheduler continuously takes pods off that queue and schedules them on the nodes.
Also, read our blog post on Kubernetes Architecture
Kube scheduler
Kube scheduler is that the default scheduler for Kubernetes and runs as a part of the control plane. Kube scheduler is meant in order that, if you would like and wish you can write your own scheduling component and use that instead.
For every newly created pod or other unscheduled pods, Kube scheduler selects an optimal node for them to run on. However, every container in pods has different requirements for resources and each pod also has different requirements. Therefore, existing nodes got to be filtered consistently with particular scheduling requirements.
Also see: This blog covers the important part of Kubernetes which is Kubernetes Network Policy
Filters
By default, the scheduler registers a series of predicates. When we apply a filter to a pod, that pod will look for a node that meet the specified conditions. FeasibleNodes mechanism can be used to increase the performance for scheduling large-scale clusters.
For example, if the total number of nodes is 1,000 and the percentage is 30%, the scheduler only needs to find 300 matching nodes in the filtering process. When 300 matching nodes are found, the filtering process will stop. This makes it unnecessary to filter all the nodes and reduces the nodes to be prioritized. However, it comes with a flaw that pods may not be scheduled to the most appropriate node.
Also Read: Kubernetes Labels and Kubernetes Annotations are one of the main components which provide a way for adding additional metadata to our Kubernetes Objects.
Prioritize
Pod priority is a method that allows scoring nodes that meet the conditions and helps find the most appropriate node for a Pod. To provide the scoring for the pod Map and Reduce arguments are used in the PriorityConfig file.
- Map calculates the scores of individual nodes.
- Reduce processes scores of all nodes in the current PriorityConfig again.
Also Check: How to Install Kubernetes
Methods Used for Kubernetes Pod Scheduling
There are several ways available through which one can determine on what node, pods can be placed. Let’s take a look at some of them.
1. Node Selector
nodeSelector is that the simplest recommendation for scheduling a pod on a specific node. nodeSelector is a field of PodSpec. It specifies a map of key-value pairs. For the pod to be eligible to run on that specific node, the node should have each of the indicated key-value pairs labels as used for the pod. You can label the node with the following command:
kubectl label nodes <node-name> disktype=ssdNote: Learn more about Kubernetes Pods
A Pod config file with a nodeSelector section:
apiVersion: v1
kind: Pod
metadata:
name: nginx
labels:
env: test
spec:
containers:
- name: nginx
image: nginx
imagePullPolicy: IfNotPresent
nodeSelector:
disktype: ssd2. Node Affinity/Anti-Affinity
Node Affinity/Anti-Affinity is a method to fix rules on which nodes are selected by the scheduler. This feature is a generalization of the nodeSelector. The rules are defined using the familiar concepts of custom labels on nodes and selectors laid out in pods, and that they are often either required or preferred, counting on how strictly you want the scheduler to enforce them.
Required rules must be met for a pod to schedule on a specific node. If no node matches the criteria, then the pod won’t be scheduled. Required rules are laid out in the required During Scheduling Ignored During Execution field of nodeAffinity.
Affinity rule is a part of PodSpec.
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: "size"
operator: In
values: "large"Ignored During Execution means that the pod continues to run the node even if the labels on the node changes or affinity rules are no longer met. required During Scheduling Required During Execution means pod will throw out from nodes as soon as they don’t satisfy the node affinity rule(s).
Read More: About the ingress controller, it is an intelligent Load Balancer and always implemented using a third-party proxy.
preferred During Scheduling Ignored During Execution means that if nodes match the rule, they will be given first priority, and if only no preferred nodes are available then non-preferred nodes will be chosen.
affinity:
nodeAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: "size"
operator: In
values: "large"Node anti-affinity is the opposite of Node affinity. This feature is used when we want certain pods not to be placed on particular nodes. It can be achieved by using the NotIn operator.
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: "size"
operator: NotIn
values: "large"3. Taints and Tolerations
A related feature is “taints and tolerations,” which allows you to mark (“taint”) a node in order that no pods can schedule onto it unless a pod explicitly “tolerates” the taint. Marking nodes rather than pods (as in node affinity/anti-affinity) is especially useful for situations where most pods within the cluster should avoid scheduling onto the node. For example, you would possibly want to mark your master node as schedulable only by Kubernetes system components.
The kubectl command allows you to set taints on nodes, for example:
kubectl taint nodes <node-name> key=value:NoScheduleIt creates a taint that marks the node as unschedulable by any pods that don’t have toleration for taint with key, value, and effect NoSchedule. (The other taint effects are Prefer No Schedule, which is the preferred version of NoSchedule, and No Execute, which suggests any pods that are running on the node when the taint is applied will be evicted unless they tolerate the taint.) The toleration you would add to a PodSpec to have the corresponding pod tolerate this taint would look like this
tolerations:
- key: "key"
operator: "Equal"
value: "value"
effect: "NoSchedule"Also Check: Kubernetes Configmap Example. Click here
4. Taints/Toleration and Node Affinity
When working in an Organization where K8s cluster is being shared among different teams. It gives rise to a condition where one team wants that their pods should be placed on particular nodes and no other pods to be placed on their nodes neither their pods to be placed on other nodes.
Since Taints and Tolerations do not guarantee that the pods will only prefer the tainted nodes, so pods can very well be placed on other nodes. Similarly, Node Affinity is used to tie up the pods on particular nodes however that does not guarantee that other pods are not placed on these nodes.
To solve this issue combination of taints/toleration and node affinity rules can be used together to completely dedicate nodes for specific pods.
Check out: Kubernetes Security For Beginner – CKS
Status Quo
Currently, the main scheduling method of the Kubernetes scheduler is Pod-by-Pod. This is also one of the current shortcomings of the scheduler. The main performance bottlenecks are as follows:
- The Kubernetes scheduler currently evaluates each Pod for all nodes. Pod scheduling is extremely slow if a cluster is large and contains many nodes.
- Currently, the scheduler does not show excellent scalability. Scheduling in some specific scenarios has to be implemented in the main process through hard-coding.
Read this blog about Kubernetes RBAC. It’s the way to outline which users can do what within a Kubernetes cluster.
